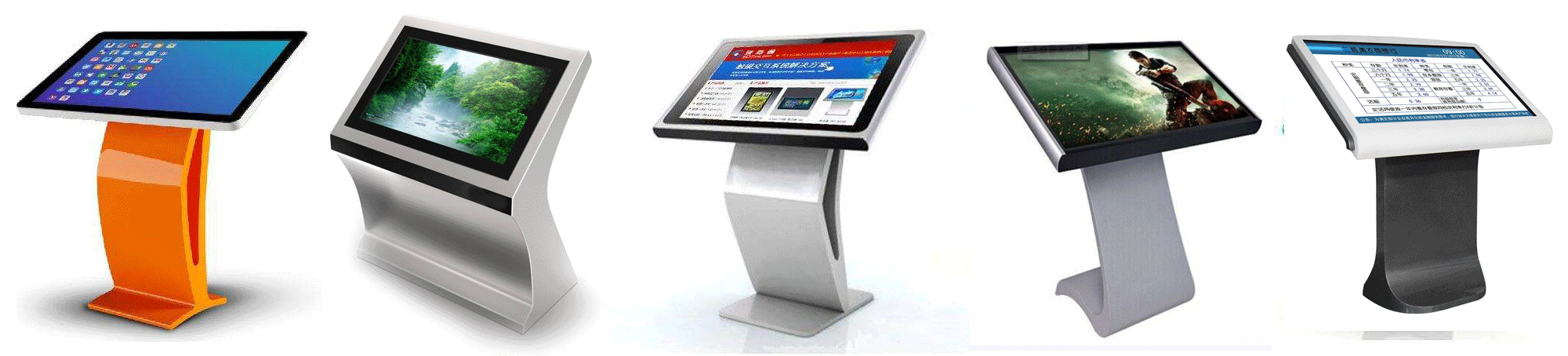

H32K 32inch Kiosk |
| |
| |
|
Specifications |
| Panel |
·LCD size: 32inch 16:9
·Resolution: HDTV(1920 x 1080 Pixels)
·Pixel pitch: 0.17675 (H) x 0.53025 (V)
·Luminance: 550 cd/m²
·Contrast ratio: 1200:1
·Viewing angle: 88 (U), 88 (D), 88 (L), 88 (R)
·Response time: 6.5 ms
·Touch screen: Infrared Multi-Touch Screen
·Touch light transmission: 90%
·Touch interface: USB |
|
| System |
·CPU: Intel® Atom™ , i3,i5,i7
·BIOS: Award 8Mbit Flash BIOS
·System memory: UP to 8GB
·Hard driver bay: MSATA+l 2.5" SATA HDD
·Expansion: Mini-PCIe |
|
| Network |
·1 x RJ45 Gigabit Ethernet Port
·1 x WIFI 802.11a/g/b/n/ac
·1 x 4G LTE |
|
| Speaker |
·2*8W |
|
| Explosion-Proof |
·6H Hardness |
|
| Mechanical & Environment |
·Color: Front & Rear panel Black Or Silver
·Mounting: Wall/Stand/VESA 75mm x 75mm
·Power input: 100Vdc to 230 Vdc/ 47Hz to 63Hz
·Operating temperature: -10 to 50°C
·Storage temperature: -20 to 75°C
·Operating humidity: 5% to 90% relative humidity, non-condensing |
|
|
|
|
| |
 |
|
